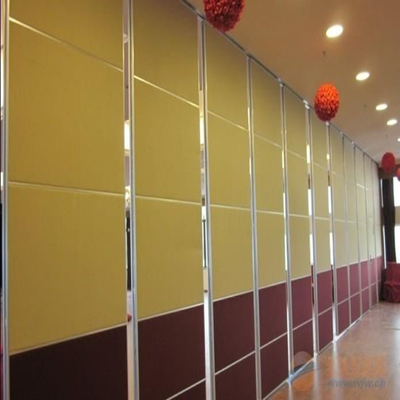

The movable partition wall panel frames are made of standard construction grade aluminum alloy.
Surface panels are available in 12mm thick MDF board, particle board, gypsum board.
Different soundproof material infill and surface material decide the acoustic performance to meet different STC requirements.
Neat and clean, operable walls should complement the room. They should provide the acoustic qualities of a fixed wall and be fitted with quality seals and closures.
We have been working on the design and production of sliding partition wall systems for many years. Our acoustic sliding partition
wall is available in lots of finishes, such as fabric, wallpaper, laminated MDF, laminated particle board, natural wood veneer beech, cherry, mahogany, maple, oak, mahogany, walnut, etc.
Our operable walls use proven tracking and trolley systems to ensure that they stack correctly and close smoothly.
Product Information
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum OR Steel Track |
| Roller on panel: | Single or double roller. |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top & bottom seals: | Top and bottom retractable seals ensure effortless moved and locked. |
| Module: | 700mm - 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF, Plywood, woven fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc. |
| Finishes: | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard. |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm | 100mm |
| Max height | 4000mm | 6000mm | 16000mm |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Vertical profiles | Aluminium, anodised with sealing profiles, painted-optional | ||
| Retractable seals | Aluminium, black with double rubber seals | ||
| Operation of seals | Manual,with supplied operating handle | ||
| Locking | Optional lock to pass doors | ||
| Pass Doors | Single or double door | ||
| Sound insulation | 40-56dB Rw | ||
| Weight | Approx 33-40kg/sqm. | Approx 43-50kg/sqm. | Approx 63-70kg/sqm. |
4. We will provide installation instructions and shop drawings: Show location and extent of operable partitions. Include plans, elevations, sections, details, attachments to other construction, and accessories. Indicate dimensions, weights,conditions at openings, and at storage areas, and required installation, storage, and operating clearances. Indicate location and installation requirements for hardware and track, including floor tolerances required and direction of travel. Indicate blocking to be provided by others.
5. Upon request at least two experienced installers can be sent to direct the installation, commission and operation. Related visa application, round-trip transportation expenses, accommodation and food during installation and labor cost for our installation specialists will be extra calculated. A construction team of 3-5 people and related scaffolding, cranes, elevator, and other needed tools for site installation should be provided.
7. Delivered to the clients after confirmed all smooth operation, project perfect end.
FAQ:
1. How to install load-bearing beams or steel structure for support operable wall partition?
The operable partition wall is composed of a plurality of individual panels supported by an overhead track system. Due to the lack of
floor support or rail, the overhead track supports the full loading of the operable wall.
This is usually done by using pre-fabricated beams which are secured to the structure at a pre-calculated interval according to the
weight of the operable wall. The most common materials commonly used in overhead structures are steel or iron. The support steel
structure is built by others and we advise the weight of walls for reference.
2. How about installation of the acoustic operable walls?
We provide installation instructions and installation videos, so the installation is normally not included. As it's not cost effective to send
our team overseas to install. If the project is large and the customer accepts the installation fee, we can send our technician to guide
the installation.
3. What is the surface finishes?
Various finishes are available. The most popular surface treatment is melamine, laminates, wood veneer, paint and various wallpaper.
However, it is also possible to accommodate a more professional surface treatment such as sound absorption panel and perforated
board.
Automatic Movable Partition Walls
Function:
Press the button, partition walls will open and close automatic, no need hand push, convenient and luxury for customers
Application:
Hotel / Corporate / Restaurant / Airport / Hospitality / Convention Center / Banquet Hall etc.
Features:
1.Full Automatic, Intelligent Microcomputer Control.
2.Surface Treatment Optional
3.Safety Protect Funtion
4.Heavy & Light Type Optional
5.Space Saving
As manufacturing factory headquartered in guangzhou, an important port city of China's foreign trade, Guangzhou CN Electrical Equipment Co., Ltd. is a high-tech enterprise which integrating R&D, Manufacturing and Trading, one of the leading and exclusive manufacturer of Automatic Partitions and Automatic Doors and the only company in China which has a dedicated manufacturing plant of electrically operated vertical lift folding partition Walls in China.
Our factory covers an area of more than 12,000 square meters. We have our products installations throughout china and abroad. The annual manufacturing capacity to 500 sets of various automatic revolving doors and 10,000 square meters of motorized partition walls, we have produced and installed Automatic Doors and Electrical Movable Walls for all types of establishments like high end residences / conference room / banquet halls in hotels / auditorium / convention centre / meeting rooms / board rooms / training rooms etc.
All the materials used are in compliance to international standards such as ISO 9001, CE, IEC etc. With the strictly control for designed, production, inspection and services by our advanced quality management system, enable the products of Guangzhou CN Electrical Device Co., Ltd selling well in the domestic market, and keep rapid growth in the European, American, Asia and Middle East market. Successfully established strategic cooperative partnership with famous domestic and foreign enterprises like Siemens, Phillips, and BEA etc.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
